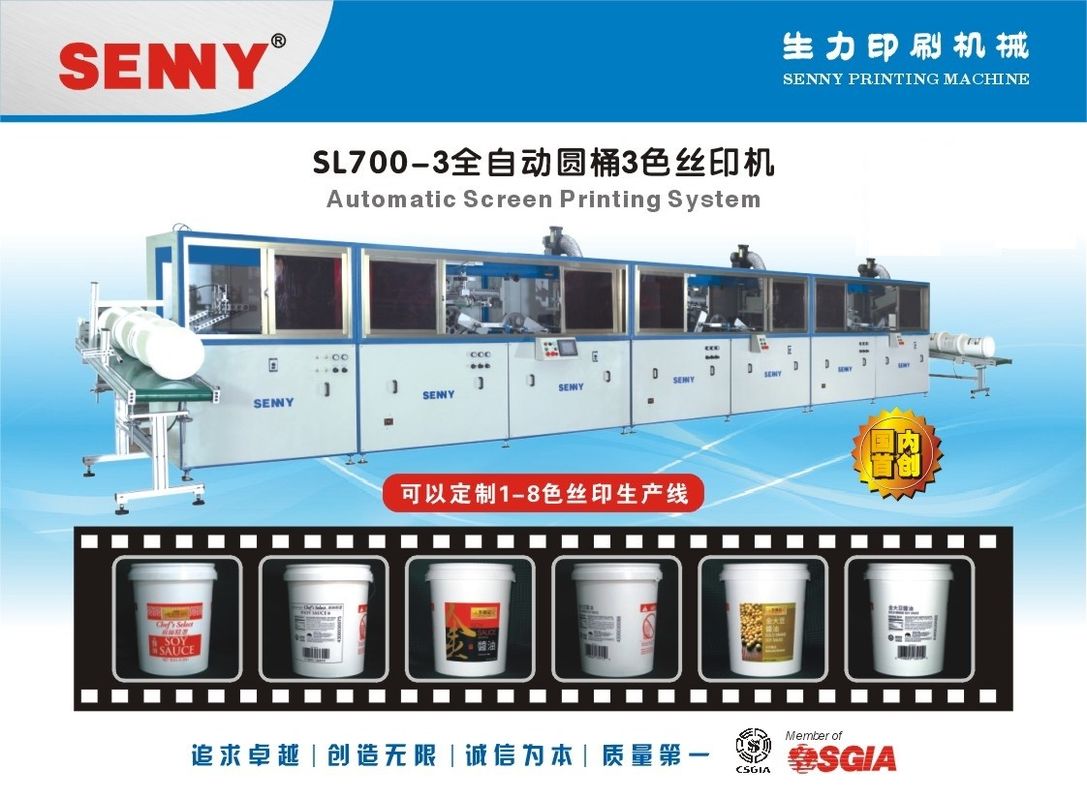

Fully Automatic 380 V 20 kw 3 Color Screen Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL700-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Container Volume: | 5-30L | Printed Colors: | 1-3 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | 380 V Screen Printing Machine,3 Color Screen Printing Machine,20 kw Screen Printing Machine |
||
Product Description
1-3 Color Fully Automatic Screen Printing Machine With Independent PLC Program And Touch Panel Control System
Technical Specifications:
| Model | SL700 |
| Cylindrical container diameter | Φ150-Φ350mm |
| Cylindrical container height | 200-400mm |
| Power voltage | 380V 50Hz |
| Air Pressure | 5-7kg/cm2 |
| Max. screen frame size | 1200 X 400mm |
| Power consumption | 20KW |
| Machine weight | 2500kg |
| Max. printing speed | 5000pcs/hr |
| Dimension | L12000XW2500XH1800mm |
Application:
The SL700-3 printing system is only suitable for round (cylindrical) plastic drums with a volume of 5-30L, widely used for chemical and food packaging. We can customize the machine to print up to 12 colors according to your requirements.
Features:
1. Automatic speed-adjustable conveyor belts and direction-fixing systems.
2. Automatic continuous flame treatment system
3. Pre-fixing function for cylindrical bottles and bi-directional switching printing system that monitors the object-free printing function.
4. Device for converting from oval to cylindrical bottles.
5. Curing system with Americal UV lamps.
6. 2 meters long inspection well for finished products.
7. Independent PLC program control system and touch screen control system.
8. Adopting famous brand electrical components for stable machine operation.
Screen printing device
Blanking device
Printing samples
