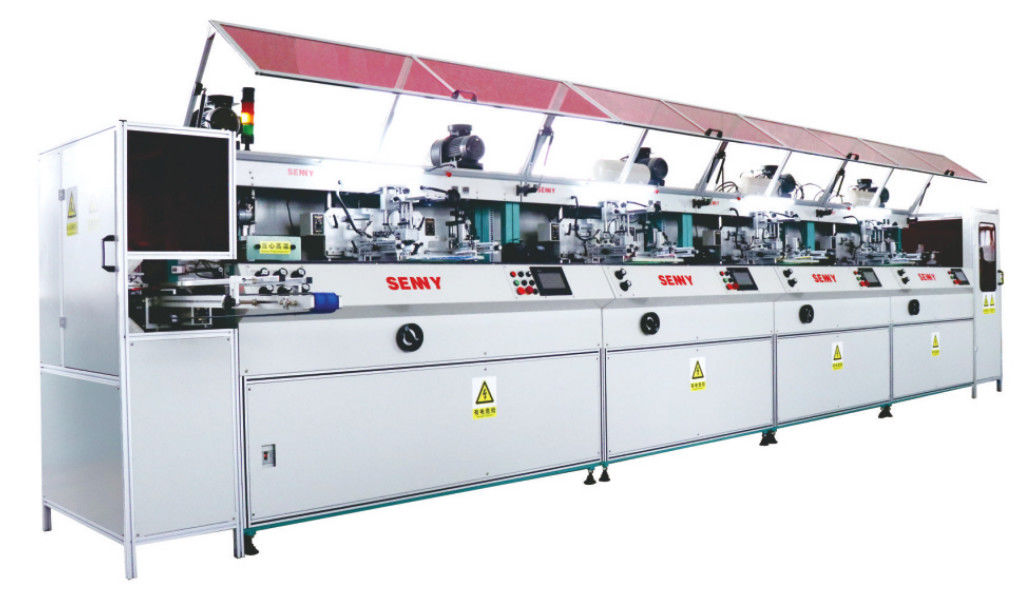

6000pcs/Hr 12 Color Bottle Silk Screen Printing Machine CE Certification
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1888 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| UsageStation: | 1-12 Stations | Printed Colors: | 1-12 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | 6000pcs/Hr bottle silk screen printing machine,Multicolor bottle silk screen printing machine,CE bottle silk screen printing machine |
||
Product Description
Squre/Round/Oval Plastic Or Glass Bottles Multicolor Screen Printing Machine, Can Be Configurated With Labeling System
Technical Specifications:
| Max. printing area | L300 x W250mm |
| Cylindrical container diameter | Φ20-Φ120mm |
| Square or Oval product diameter | Φ20-Φ100mm |
| Width elliptical or flat container | 20-130mm |
| Container height | 50-300mm |
| Max. printing speed | Up to 6000pcs/hr |
SAFE EFFIENCY INNOVATIVE
* SLS1888 servo-driven automatic machine for screen printing of containers of plastic or other materials with round, oval, square or rectangular cross sections, with centered or off-centered necks and easy change of different shapes in the printed cross section.
* Shape changeover: 30 minutes per machine, from cylindrical to oval or flat, with 360-degree printing.
* Linear unit structure combinations: Up to 8 inline colors are optional.
* Machines are PLC and touch screen operated for easy operation with an excellent warning system.
* Feeding components include: Feeding belt and robot hand for side selection.
* Side-selection mainframe is driven by servo motor for rotary dedusting and flame treatment of round containers.
* Flame treatment for round, oval and rectangular containers.
* Pre-positioning device
* Secondary positioning device for printing.
* Electronic lifting device for squeegees
* UV curing by rotation of round containers driven by stepper motors.
* Electronic UV system: Device with freely adjustable light (alternative to LED UV curing systems)
* Auxiliary machine part with optional oval and square container sides
* Output parts: robot hand and belt for standing up containers
* CE-compliant.
The SLS1888 can be configured with a plasma processing system, a labeling system, a hot stamping system or a UV-LED system, depending on the customer's specific requirements.
