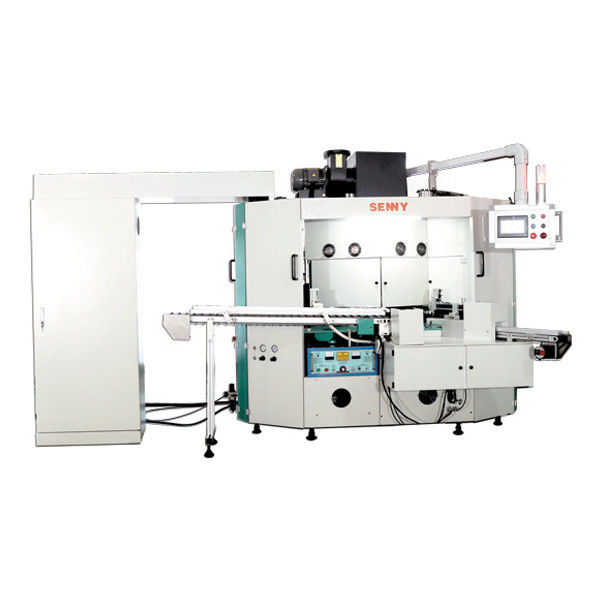

6 Station 50Hz Rotary Screen Printing Equipment 45pcs/Min
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1669-R5CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Station: | 6 Stations | Printed Colors: | 5 Cols Screen Printing + 1 Col Hot Stamping |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 50Hz Rotary Screen Printing Equipment,6 Station Rotary Screen Printing Equipment |
||
Product Description
Rotary Type Multicolor Screen Printing Machine With Visual Location And Heat Foil Stamp Device
Application:
This machine is a multifunctional rotary multi-color screen printing machine. It is mainly used for printing graphics and text on round, oval and triangular bottles.The main difference between SRS1669-D5CH and SRS1669-R5CH is that the fixing method is different, SRS1669-D5CH is double clamp fixing and SRS1669-R5CH is nesting fixing:
Double clamp fixing:
Nesting fixation:
Features:
Servo-driven machines. No gears required.
Up to 6 colors can be printed.
Tolerance control: within 0.2 mm
Maximum speed: 45 pieces per minute
Technical specification
| Model | SRS1669-R5CH |
| Print color | 5-colors screen print + 1-color hot stamping |
| Product stations | 6 |
| Product diameter | irregular shape---20~100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air pressure | 6-7 bar |
| Power | 380v 50/60Hz |
