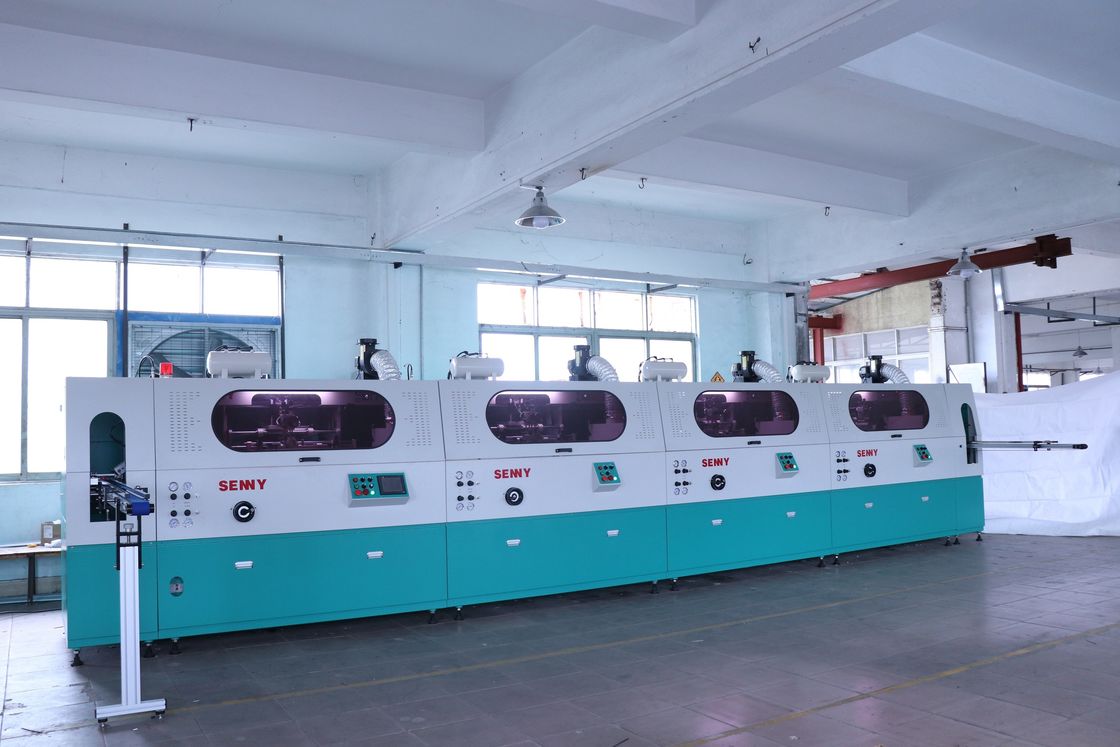

300x250mm Multicolor Screen Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1688 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Stations: | 1-12 |
|---|---|---|---|
| Printing Durability: | High Durability | Printing Color: | 1-12 Colors |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Multicolor Screen Printing Machine,300x250mm Multicolor Screen Printing Machine |
||
Product Description
Multicolor 1-12 Auto Screen Printing Machine For Bottles And Jars Max Printing Speed Up To 6000pcs Per Hour
Technical Specifications:
| Max. printing area | L300 x W250mm |
| Cylindrical container diameter | 20-120mm |
| Elliptical container radius | R30-R250mm |
| Width elliptical or flat container | 20-130mm |
| Container height | 50-300mm |
| Max. printing speed | Up to 6000pcs/hr |
SAFE EFFIENCY INNOVATIVE
* Aervo-driven automatic machine model SL1688 for screen printing of containers made of plastic or other materials with round, oval, square or rectangular cross-section and centered or off-center necks. It is easy for changing different shapes on printing section.
* Shape changeover: from cylindrical to oval or flat shapes in just 30 minutes per machine.
* Linear unit structure combinations: up to 8 inline colors.
* Machines has PLC and touch screen. It is operated for ease of operation and are equipped with an excellent alarm system.
* Infeed assembly includes: infeed belt and manipulator for side selection.
* Side selection mainframe is driven by servo motor for rotary dusting and flaming of round containers.
* Flame treatment for round, oval and rectangular containers.
* Pre-positioning device
* Secondary positioning device for printing
* Electronic lifting device for squeegees
* UV curing by means of a stepper motor-driven rotation of round containers.
* Electronic UV system: device with freely adjustable light (alternative to LED UV curing system).
* Auxiliary machine part with optional oval and square container sides
* Output parts: Manipulator and belt for erecting containers
* CE compliant.
This machine is designed not only for cylindrical, but also for elliptical and flat bottles,it is widely used in chemical and food package.
Printing samples
Our development history
