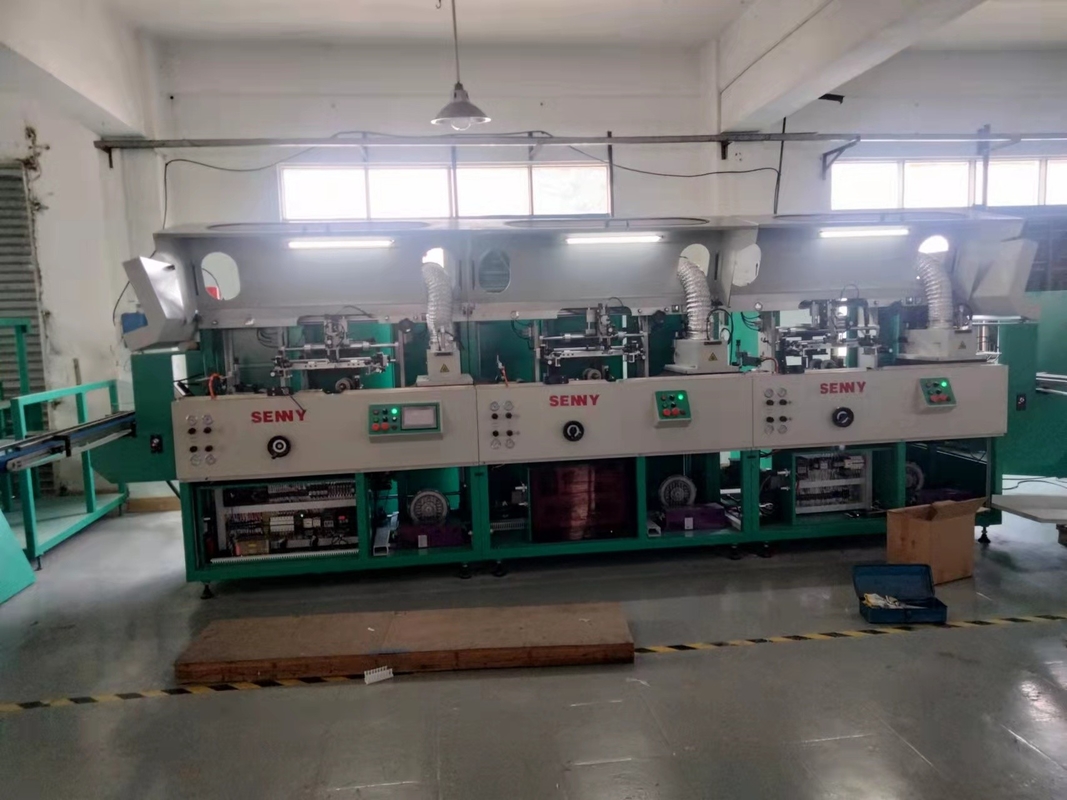

Hot Stamping LED UV Lamp Tube Screen Printing Machine With Visual System

Product Description

LED UV Lamp Tube Screen Printing Machine Low Consumption Screen Printing Process With Visual System

BOTTLE AUTOMATIC SCREEN PRINTING MACHINE

- Model SL1266-1366 are suitable for printing graphics and texts of various colors on the surface of round plastic bottles, jars, etc. The machine is easy to operate and fast to changeover.

- The machine adopts a modular combined structure, and the linear connection can realize a maximum of 8-color integrated production line.

- Model SL1288-1388-1788 are suitable for printing graphics and texts of various colors on the surfaces of plastic bottles and jars in round, oval, square and other complex shapes.

- The machine adopts a modular combined structure, each module includes screen printing and UV curing functions, and the linear connection can realize a maximum of 8-color integrated production line.

- The machine integrates multiple functions such as feeding and discharging, surface treatment, screen printing and UV curing.

- The machine can be connected to foil stamping or labeling modules to become a multi-functional printing production line such as silk screen printing with foil stamping or labeling; it can also be connected to a visual product detection module after printing to replace manual inspection.

- The feeding conveyor can be connected directly with the bottle making equipment, or it can be connected to the automatic bottle unscrambler instead of manual feeding. After printing process, the discharging can be connected to a bagging machine to save labors.

Technical Spaecifitions

Before choosing the correct printign equipment, we need to know what is the difference between screen printing and offset printing?

Silkscreen printing is to individually make a screen film for the areas which have the same color in the design, and then apply the corresponding ink on the screen and scratch it onto the product.
Since each color of ink is printed independently, the color can be indicated to pantone color number. When you want to change the color of the artwork, as long as the color on the same film changes together (the same color), there is no additional charge for the film.

Offset printing, applies 4 layers of ink: cyan, magenta, yellow, and key (black) printing into a picture. The four colors printing films are made by analyzing the CMYK color point distribution of your design through software. Since the printing films are made according to the distribution of color points, if you want to change the color, we can only adjust the overall darker or lighter. There is no way to change the color of a certain part separately, and the darker and lighter adjustment will affect the overall color presentation.
