360 degree Bottle CE UV Curing Machine Configurate 220V 40Amps
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | UV250RF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Automatic Grade: | Semi-automatic | Machine Color: | Customerized |
|---|---|---|---|
| Application Area: | Screen Printing Using UV Ink | MOQ: | 1pc |
| Leadtime: | 5-8 Working Days | Power: | 5kw |
| High Light: | 360 Degree UV Curing Machine,220V UV Curing Machine,40Amps UV Curing Machine |
||
Product Description

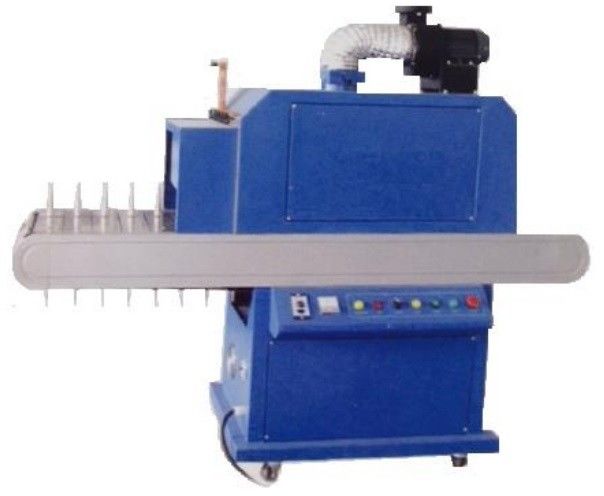

Bottle Peg UV Curing Machine Configurate With Semi-Automatic Screen Printing Machine, Make It Dry Fastly With UV Ink
This UV dryer is suited to cure round, oval and flat surfaces of screen and offset printed containers. The containers are loaded by hand onto pegs which travel through the UV tunnel. Upon passing under the UV light, the container is rotated 360°. Conveyor speed is controlled by a variable speed motor. The UV tunnel can also be tooled for handling small neck containers.
Container Specifications
• Maximum diameter: 100 mm. (3.93”) • Maximum height: 200mm (7.87")
• Inside neck diameter: 10 mm. to 24 mm. (0.4-to 1")
Machine Specifications
• 2 to 25 second curing time depending on container shape and size
• Machine dimensions: 2150 mm. X 660 mm. X 1420 mm (7.1'X2.2’X4.7’) LXWXH
• Machine weight: 300 kg. (660 lbs.)
• Electrics: 220V, 1-phase, 40 amps
• Lamp specifications: 12" arc length, 3.6 KW. 300 W per inch, with high, medium, low adjustments
Our machine shipped to many countries oversea, such as Amercia, Korea, Malaysia, India, Pakistan, Germany, Dubai, England, Phillipine, Singapore, Vietnam, Brazil, Uzbeikstan and so on.
