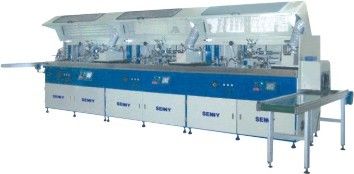

Complex Shapes Screen Printing Machine 380V LWith Hot Stamping And Labeling Function
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL1488 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-12 |
|---|---|---|---|
| Plate Type: | Screen Printer With Hot Stamping | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 12 | Brand: | Senny Or OEM |
| High Light: | Complex Shapes Screen Printing Machine,Hot Stamping Screen Printing Machine 380V,Labeler Screen Printer |
||
Product Description
Complex Shapes Fully Automatic Screen Printing Machine With Hot Stamping And Labeling Function, Three In One Machine
Optional configuration:
1. Screen printing and labeling machine
a. screen printing and labeling head interchange function, such as 2 colors screen printing and labeling machine SL1488-2CT
b. screen printing and labeling function, such as 1 color screen printing and labeling machine SL1488-1CT
c. Labeling machine, such as two heads labeling machine SL1488-2T
2. Screen printing and hot stamping machine
a. screen printing and hot stamping interchange function, such as 2 colors screen printing and hot stamping machine SL1488-2CH
b. screen printing and hot stamping function, such as 1 color screen printing and hot stamping machine SL1488-1CH
c. Hot stamping machine, such as two heads hot stamping machine SL1488-2H
Technical Specifications:
| Machine running speed | Up to 100pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-130mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1190mm * W 1200mm * H 2000mm |
Fully automatic screen printing machine (1-12 colors) for containers: SL1488-1C (12C)
1. Machine features: a great achievement of nearly 30 years of machine design experience. It integrates multiple functions such as incoming and outgoing materials, surface treatment, screen printing and UV curing. The linear combined module structure can realize an integrated production line of up to 12 colors. Precision design and manufacturing can realize electromechanical synchronization, perfect automation, simple and convenient man-machine dialogue operation, and a new appearance of incoming and outgoing materials and host safety protection, the new transmission design makes the machine run stably and quickly, easy to transfer within different shape of containers, easy to operate and save manpower. The technology is in the leading position in China.
2. Applicable industries: cosmetic, daily chemical, food, pharmaceutical, health products, baby products, automotive supplies, cleaning supplies , alcohol, glass glue, toy, sporting goods and so on.
3. Scope of application: This machine is suitable for single color or multi-color screen printing on the surface of containers with various shapes such as round, oval, square, complex shapes etc. Container materials include plastic, glass and metal, etc. Containers include cans, bottles, cups, caps and hard tubes, etc.
4. Main functions: Speed transmission feeding function; Vacuum directional feeding function of manipulator; Speed control stepper motor drive bottle surface treatment function; Electrostatic dust removal function; Flame surface treatment function; Prepositioning function; Adjustable pressure inflatable printing function in the container; Automatic screen printing function; Electric printing head lifting function is convenient for screen loading and unloading; High strength American UV lamp curing function(LED-UV curing fuction can be optional); Speed regulating motor rotation function when cylindrical containers passing through the UV; Manipulator vacuum discharging function; Discharging speed control conveying function
