Multicolor Flat Screen Printer For Flat Buckets
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL700-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-12 |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 12 | Brand: | Senny Or OEM |
| High Light: | Multicolor Flat Screen Printer,Flat Buckets Flat Screen Printer,Multicolor Flat Screen Printing Machine |
||
Product Description
Multi Color Screen Printing Machine Flat Screen Printer For Flat Buckets, Can Customized Quantity Of Colors
Technical Specifications:
| Model | SL700-F |
| Container width | 150-350mm |
| Container heigth | 100-410mm |
| Max. printing area | L250XW250mm |
| Max. screen frame size | L500XW400mm |
| Max. printing speed | Up to 1000pcs/hr |
Application:

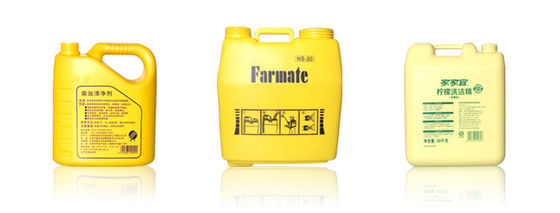

This printing system SL700-F is for flat plastic buckets only, the volume can be 5-30L; it is widely used in chemical and food package.
Features:
1. The innovative transmission system is very steady in passing the containers, easy to shift between different types of buckets, easy to operate.
2. This machine allows to print up to 12 colors, each module machine is independent and synchronous drive, accurate registration between colors, stable and reliable performance.
3. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable at high speed.
4. According to the characteristics of products, this machine can be equipped with kinds of functions such as automatic loading and unloading, orientation, flame treatment, dedusting, automatic registration, non-printing without bottles , and UV Curing system, etc.
5. All components are from German, USA and Japan to ensure the machine quality and stability of printing.
6. We can customize machine according to the special products.
Screen printing device
Blanking device

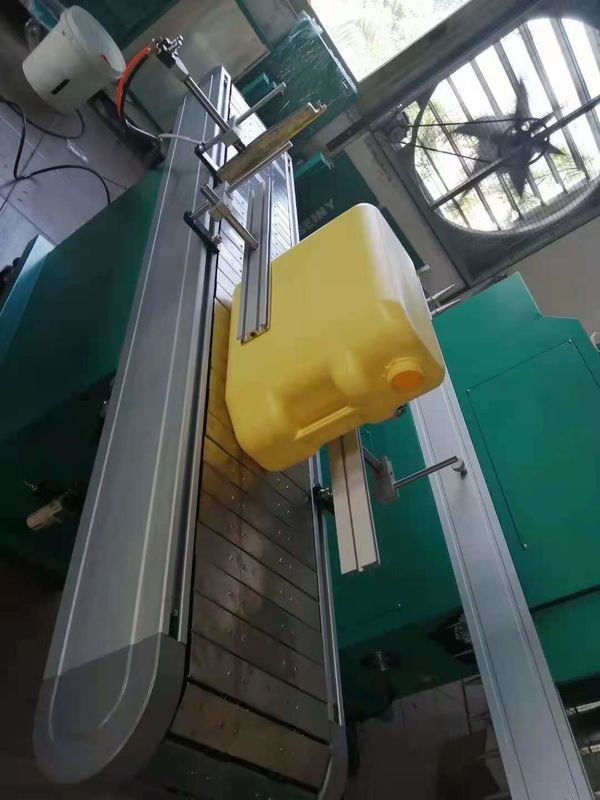

Machine Pic
