380V 25KW Flat Screen Printing Machine High Speed For Oil Drums
Product Details:
| Place of Origin: | China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL380-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS Per Month |
|
Detail Information |
|||
| Usage: | Bottles, Jars, Caps | After-sales Service Provided: | Video Technical Support, Online Support |
|---|---|---|---|
| Plate Type: | Screen Printer | Warranty: | One Year |
| Automatic Grade: | Fully Automatic | ||
| Highlight: | 380V flat screen printing machine,25KW flat screen printing machine,25KW high speed screen printing machine |
||
Product Description

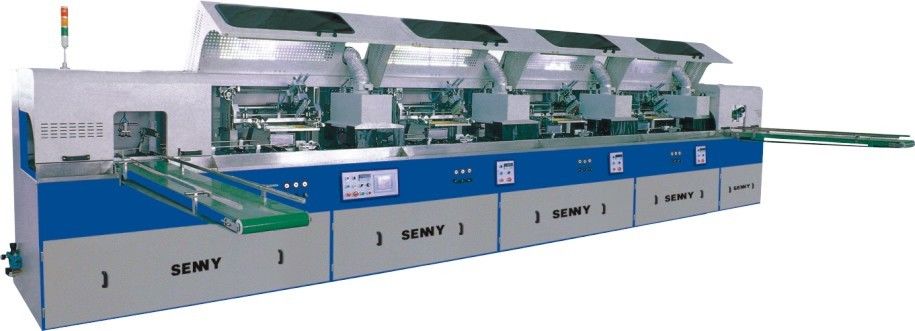

4L And 5L Engine Oil Flat Drums Multicolor Screen Printing Machine High Speed
Applications:
It is mainly used for 1-4 color screen printing of 4L and 5L oil drums.
Features:
1. PLC programmable controller and easy-to-use touch screen are adopted to make the machine easy to operate and stable.
2. The machine speed can be adjusted according to the printing needs to meet different printing requirements.
3. The feeding conveyor belt of the machine adopts anti abrasion belt, which can protect the surface of the oil barrel from abrasion.
4. The flame surface treatment is equipped with automatic and continuous flame spraying function to meet different printing speed, and equipped with safety anti tempering device.
5. The machine adopts precise dividers for transmission, with simple maintenance and stable transmission.
6. It is equipped with container inflation and pressure regulation function to ensure the oil barrel thickness and fine printing quality.
7. The pressure of the scraper is adjustable, and the scraper part has the function of fine-tuning the direction and angle of X, y, Z and z-r.
8. The machine is equipped with the function of printing in advance, so as to meet the high-speed printing requirements of customers.
9. The machine is equipped with a high intensity UV curing system.
Technical Specification:
| Max. printing area | 300×250mm |
| Max. screen frame size | 550×350mm |
| Max. drum height | 350mm |
| Max. drum width | 300mm |
| Max. printing speed | 5000pcs/hr |
| Power voltage | 380V 50Hz |
| Power consumption | 25KW |
| Air pressure | 5-7 kg/cm2 |
| Machine weight | 4000KG |
| Dimensions | L8200×B3000×H1700mm |
Printing samples
